Radioddity CS-47 Small CB Radio, AM/FM, 40-Channel, One Hander Microhone Built-in Speaker Noise Reduction, Large 7-Color Backlit LCD Display, VOX, RF Gain Long-Range for Offroad, Trucker, Backcountry
Original price was: $94.99.$75.99Current price is: $75.99.
Product Description

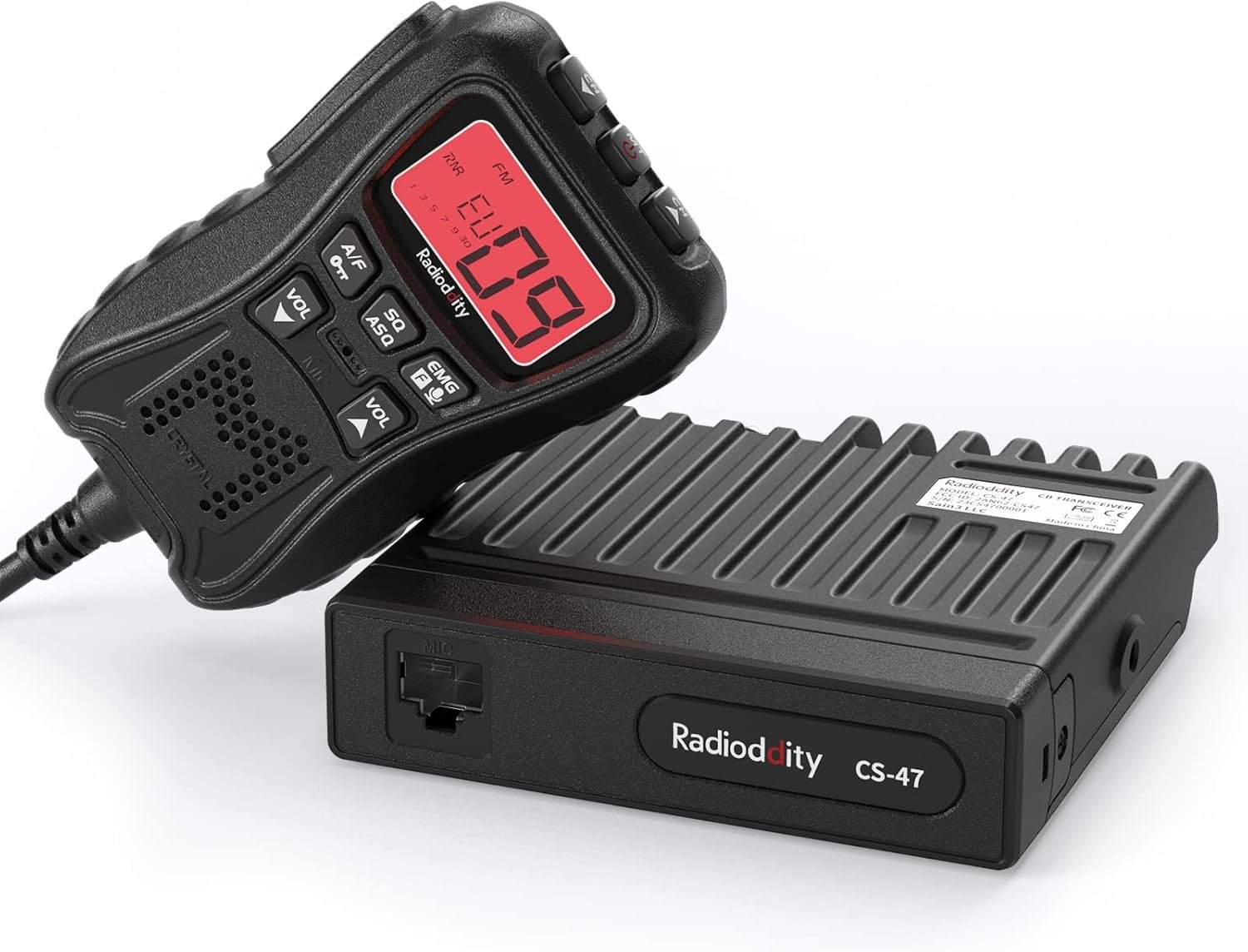

At a palm-sized 4” x 4” x1” body, this radio is easy to mount on any vehicle.
The handheld mic comes with a large 7-color adjustable backlit LCD display and built-in speaker.
You can use it in America and most European countries, allowing you to listen to more stations.
1 Versatile Handheld Mic
2 Compact & Easy-mounting

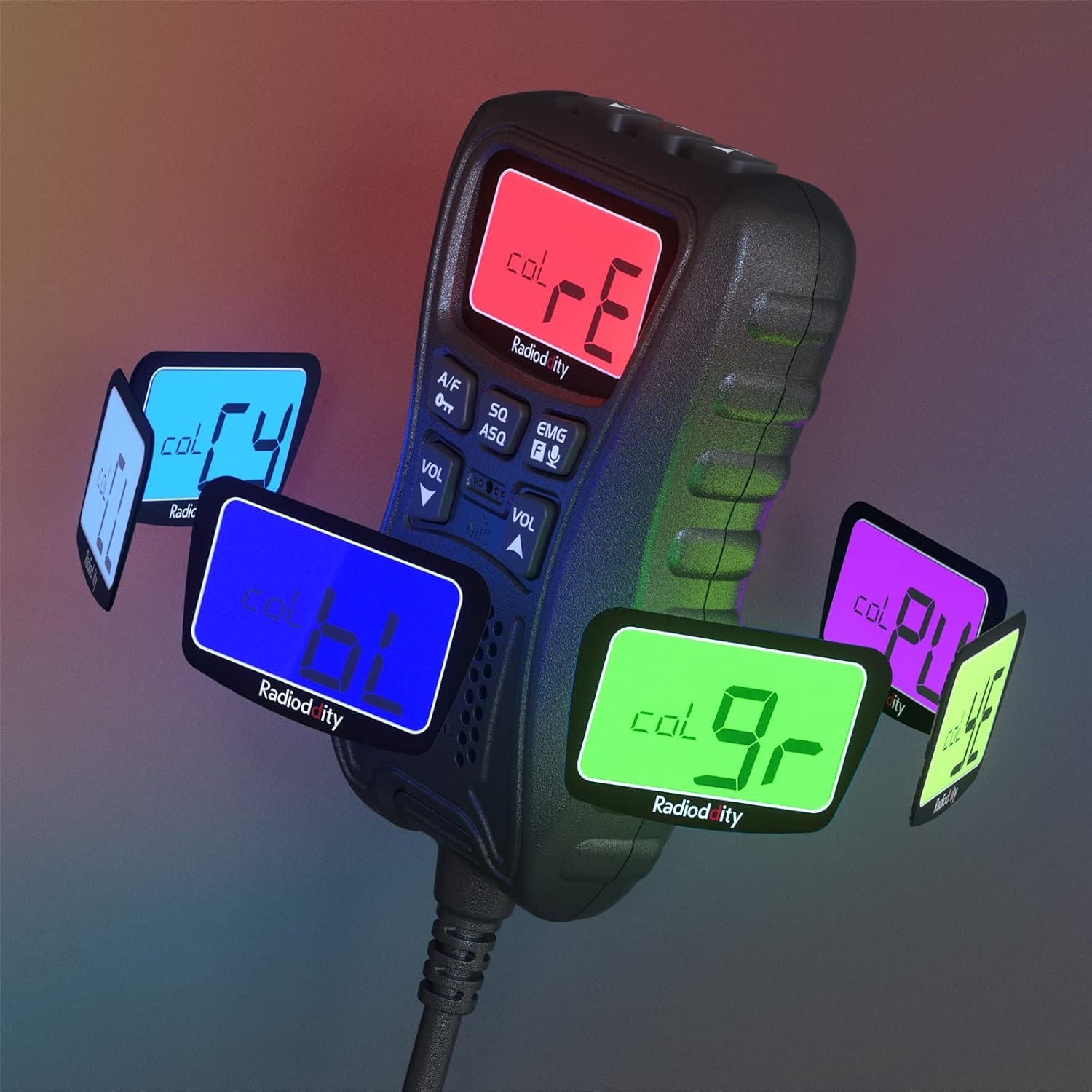

3 7-Color Backlit Display
4 AM/FM Modulation

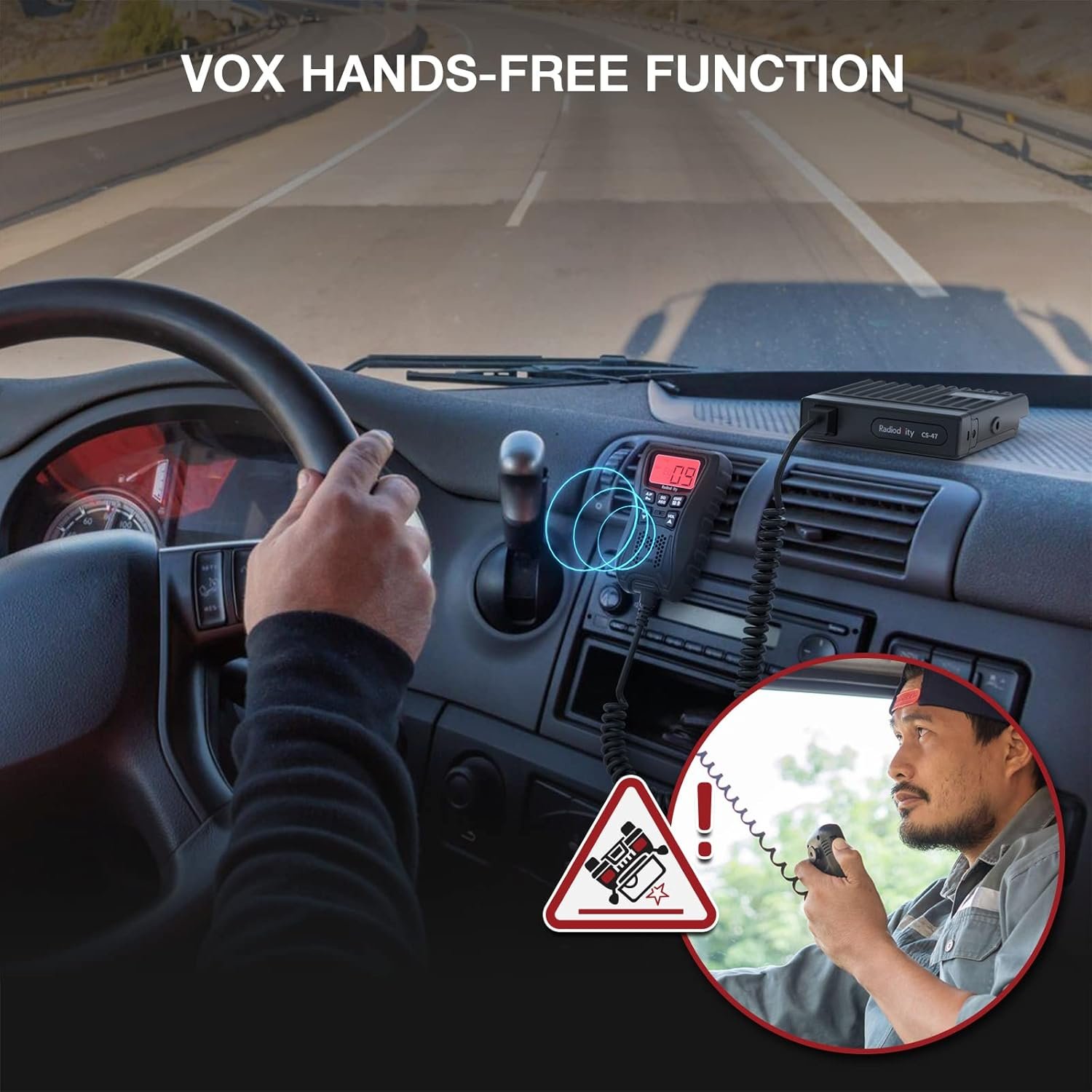

VOX Function
Press and hold the PTT button, then short press the “EMG” key to activate the VOX function. After that, you can free yourself from finding the microphone and the PTT button to make it convenient and safe to use your CB radio while driving.
Active Noise Cancellation_Testing Video
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
CH9/19 Emergency Channel
An ideal radio for emergency communications or for traveler assistance. Priority should be given to calls for help if you use this channel.
Scan Function
Press and hold “CH ↓” or “CH ↑” for 7 seconds to start the scan function. This allows you to find and listen to active channels quickly and easily.
RF Gain Control
This allows you to adjust the receiving sensitivity between 3dB and 48dB. Normally, it should be set as high as possible to receive stations far away.
Squelch Control
Nine (9) Automatic Squelch (ASQ) for FM and 34 Manual Squelch for AM helps this radio block out background static and noise when receiving.
How is it different?
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars
163
4.2 out of 5 stars
405
4.6 out of 5 stars
42
4.4 out of 5 stars
163
4.4 out of 5 stars
64
4.4 out of 5 stars
163
AM/FM
AM/FM
AM/FM
AM/FM
AM Only
AM/FM
Active Noise Cancelling
✔
✘
✔
✘
✔
✘
7-Color LCD Display
✔
✘
✘
✔
✔
✘
Built-in Mic Speaker
✔
✘
✔
✔
✔
✔
VOX
✔
✔
✔
✘
✔
✘
Specifications
Frequency: 26.965-27.405 MHz Frequency Tolerance: ±5.0 ppm Frequency Control: PLL Synthesizer Input Voltage: 13.2V Power consumption: Transmit: <2A Receive: Squelched 0.3A Operating Temperature Range: -4℉ to 122℉/ -20°C to 50°C Antenna Impedance: 50Ω Antenna Connector: UHF, SO-239 Mode of Operation: Simplex
How to install the CS-47 to a vehicle? (Method 1) Mount a 12V plug
You can either use a crimp connection or solder the ends together. Using this 12V plug (not included), you simply plug the radio into a 12V accessory port in your vehicle
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
How to install the CS-47 to a vehicle? (Method 2) To use an add-a-fuse device
With an Add-a-Fuse (not included), you remove the fuse from the fuse block and plug in the fuse. The fuse you remove goes into the socket closest to the pins, and a fuse for the radio goes into the remaining socket.Your radio’s red wire connects to the add a fuse red wire, and the radio’s black wire should be connected to any heavy metal screw or bolt that mounts to the vehicle’s frame.That ensures the ground is made and the circuit is complete.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Product Dimensions : 4 x 4 x 1 inches; 8.99 ounces
Item model number : CS-47
Date First Available : December 19, 2022
Manufacturer : Radioddity
ASIN : B0BQJ8Y5B7
Country of Origin : China
4W Power Output: The CS-47 has a variety of CB radio features including AM/FM channels, VOX, CH9/19 emergency channel access, scan function, RF gain control, and squelch control. It also works with external speakers, though we recommend the Radioddity CB radio speaker (search B07Y7531C9 on Amazon).
Versatile, Handheld Mic: The removable microphone has a large, 7-color adjustable backlit LCD display and built-in speaker. The fully integrated microphone is designed for faster and easier access to the features you need.

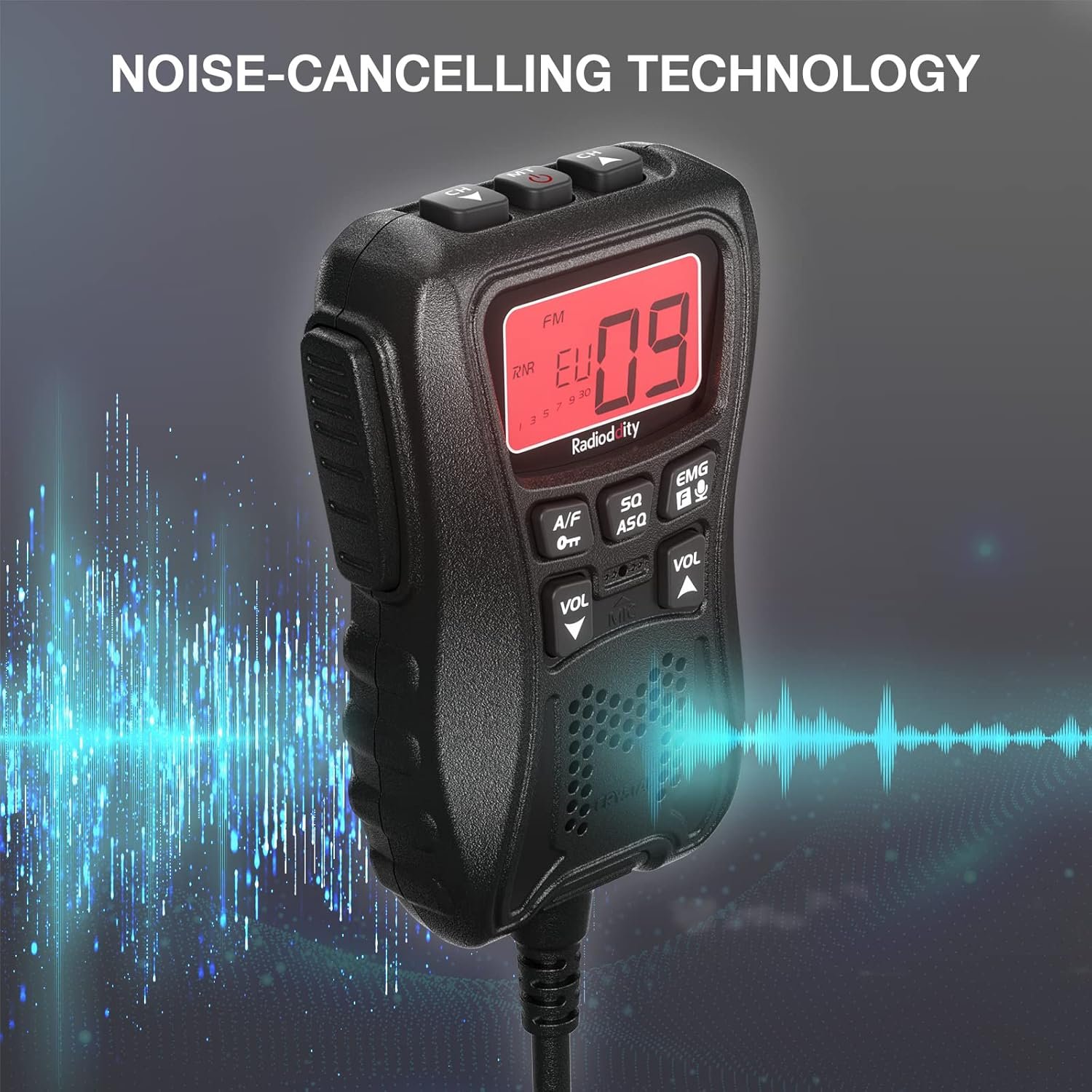

Active Noise Cancellation: Block unwanted noise so conversations between you and your friends are just as clear as if you were face-to-face.
Privacy Code: Access the CTCDCS menu for a total of 38 CTCSS and 104 DCS private code to set. Once CTCSS/DCS is set, then within the communication range, your team members can only receive signals from the same frequency with the same setting.

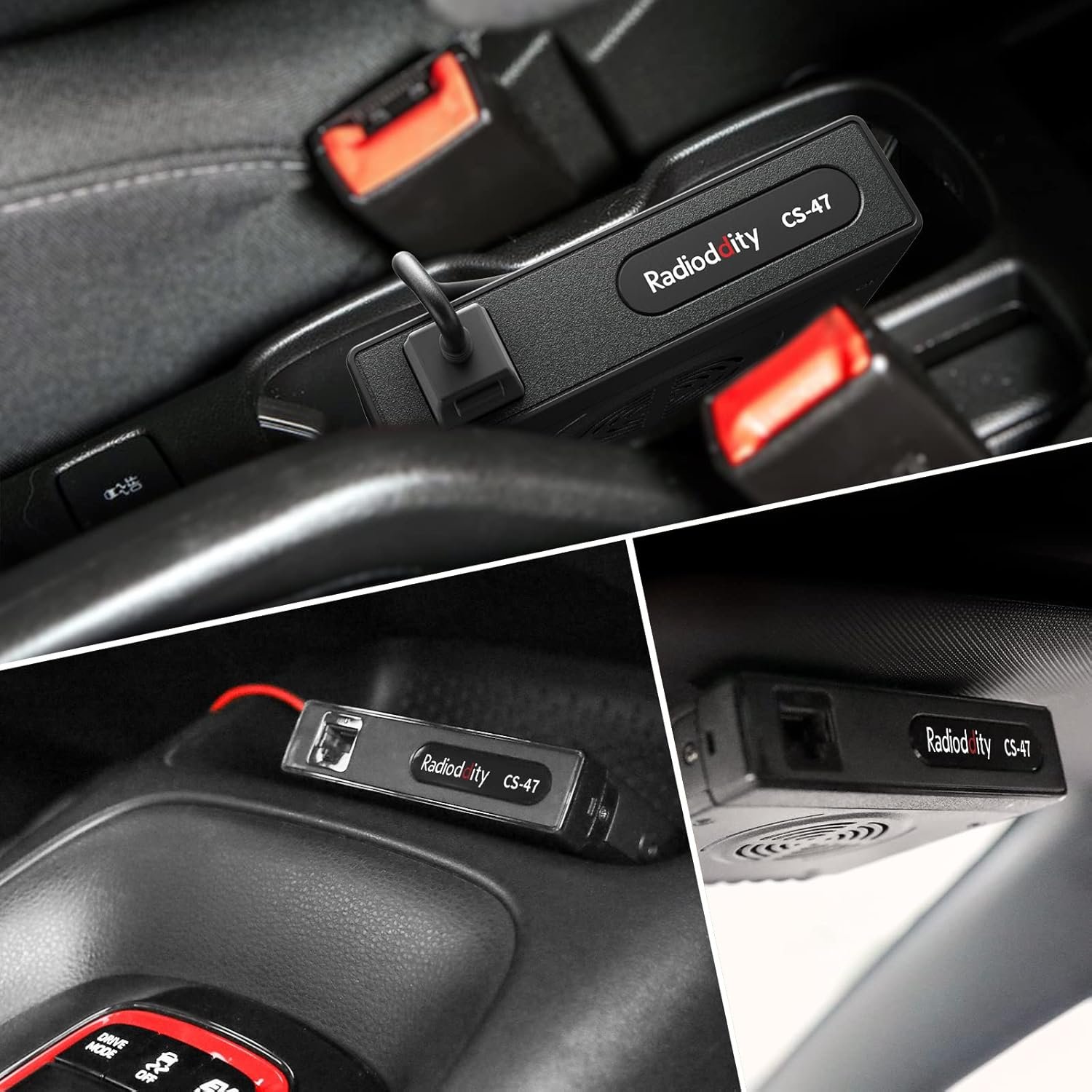

Compact & Easy To Mount: Measuring in at a palm-sized 4’’ x 4’’ x 1’’ dimensions, this CB radio fits into limited spaces without being cramped. FCC ID: 2AN62-CS47
